he new generation of single phase electric instant tank less water heaters is again striking proof Vaillant’s leadership in innovation and design. The electronicVED pro is electronically guided and the outlet temperature can be set with a digital display and stays constantly up to the performance limit. A flaw rate controller provides the ability to regulate flow for increased comfort and energy efficiency.
| Features | Exclusive | Plus | standard | pro | pure |
|---|---|---|---|---|---|
| Temperature Adjustment | Digital | Rotary knob (-) (+) with display) | Rotary knob | for expert only (internal) | |
| tapping detection | flow rate sensor | ||||
| water flow limiting | motor valve | water flow limiter 6-9 l | water flow limiter 8-10 l optional for INT 12 l/ min | ||
| remote control | 1 x per appliance, up to 4 option | No | |||
| capable for solar | yes (except for 27kW appliance) considere an anti-scalding protection | New! Yes ( except for 27 kW appliances) consider an anti-scalding protection. | |||
| Max. Inlet temperature | 60˚C / 25˚C *for 27kW appliances | 60˚C / 25˚C *for 27kW appliances | |||
| electronicVED pro | unit | VED E 18/8 B | VED E 21/8 B | VED E 24/8 B | VED E 27/8 B |
|---|---|---|---|---|---|
| Nominal output | kW | 18 | 21 | 24 | 27 |
| Electrical connection | 400V / 50Hz / 3/PE ~ | 400V / 50Hz / 3/PE ~ | 400V / 50Hz / 3/PE ~ | 400V / 50Hz / 3/PE ~ | |
| Nominal current | A | 26 | 31 | 35 | 37,7 |
| Max. Flow rate quantity | l/min | 8 | 8 | 8 | 10 |
| Max. Permissible inlet temperature | °C | 50 | 50 | 50 | 25 |
| temperature setting | °C | three stages 35, 45, 55˚C | three stages 35, 45, 55˚C | three stages 35, 45, 55˚C | three stages 35, 45, 55˚C |
| Dimensions: Height / Width / Depth | mm | 481 / 240 / 100 | 481 / 240 / 100 | 481 / 240 / 100 | 481 / 240 / 100 |
| Weight | kg | 4,4 | 4,4 | 4,4 | 4,4 |
| IP rating | IP | IP 25 | IP 25 | IP 25 | IP 25 |

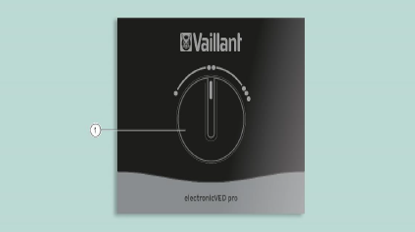

1. Turning knob "temperature output" in Steps
