The new Generation of electric instantaneous water heaters is again a striking proof of Vaillant’s leadership innovation. Extremely comfortable in use and tailored to individual demands and overall easy-to-operate, easy-to-install and easy-to-service appliance.
| Features | Exclusive | Plus | standard | pro | pure |
|---|---|---|---|---|---|
| Temperature Adjustment | Digital | Rotary knob (-) (+) with display) | Rotary knob | for expert only (internal | |
| tapping detection | flow rate sensor | ||||
| water flow limiting | motor valve | water flow limiter 6-9 l | water flow limiter 8-10 l optional for INT 12 l/ min | ||
| remote control | 1 x per appliance, up to 4 option | No | |||
| capable for solar | yes (except for 27kW appliance) considere an anti-scalding protection | New! Yes ( except for 27 kW appliances) consider an anti-scalding protection. | |||
| Max. Inlet temperature | 60˚C / 25˚C *for 27kW appliances | 60˚C / 25˚C *for 27kW appliances | |||
| electronicVED exclusiv | unit | VED E 18/8 | VED E 21/8 | VED E 24/8 | VED E 27/8 |
|---|---|---|---|---|---|
| Nominal output | kW | 18 | 21 | 24 | 27 |
| Electrical connection | - | 400V / 50Hz / 3/PE ~ | |||
| Nominal current | A | 26 | 31 | 35 | 37.7 |
| Max. Flow rate quantity | l/min | 8 | 8 | 8 | 10 |
| Max. Permissible inlet temperature | °C | 55 | 25 | ||
| temperature setting | °C | Between 30˚C and 55˚C, three stages, electronically regulated | |||
| Dimensions: Height / Width / Depth | mm | 481 / 240 / 100 | |||
| Weight | kg | 4,4 | |||
| IP Rating | - | IP 25 | |||

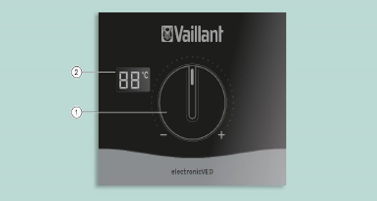

1. Turning knob temperature
2. Set temperature
