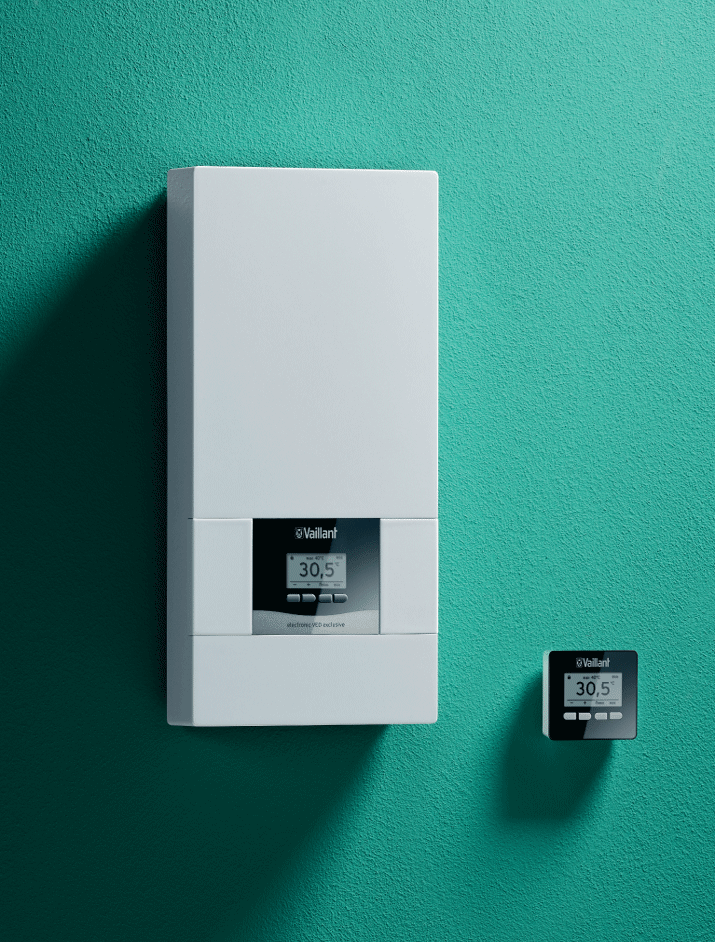

VED E exclusive - Comfort offering more quality to life
VED E exclusive offers maximum hot water and operating conveniences thanks to its electronic output and water quality control.
  • Variable rate up to 16 l/min (Exclusive)
  • Motor valve for variability of volume flow(exclusive)
  • Plain text display with energy monitoring function (exclusive / plus)
  • Casing made from UV-resistant ABS
  • Display can be changed to the top of the appliance
  • Max. outlet temperature 55 ºC

OverviewFeatures Downloads

VED E exclusive



The electronic output and water quantity control Temptronic controls the warm water outlet temperature which can be set between 20 and 55 ºC - always right to the degree. In case of pressure and inlet temperature variations, the set temperature is kept constant even if hot water is tapped simultaneously for example at the shower, the bath tub or the kitchen sink - thus the system rules out undesired alternating shower temperature.

Wireless radio operation

ElectronicVED exclusive is the first hot water heater which offers with a bidirectional remote control. A maximum of 4 water-proof remote controls can communicate with the electronicVED exclusive. Thus, the VED E exclusive enables the user to set the temperature right to be desired degree from each and any room Of the house or even directly out of the bath tub without requiring additional wiring. New feature: the appliance display as well offers a bidirectional connection to the appliance electronics. Thus, the uninterrupted and consistent bidirectional communication between the appliance electronics and the remote control will be possible.

Comforts and quality tailored to the user demands

Comforts and quality means more than only reliable hot water temperatures. The VED E exclusiv is certified with the quality label of the Association for gerontological technology granted to especially userfriendly products. It is an innovative solution for a growing market. Thanks to its easy-to-read display, the intuitive operation, its absolute functional safety and its easy-care surface, the VED E exclusive meets the most exacting demands

Back to top
Features Exclusive Plus standard pro pure
Temperature Adjustment Digital Rotary knob (-) (+) with display) Rotary knob for expert only (internal)
tapping detection flow rate sensor
water flow limiting motor valve water flow limiter 6-9 l water flow limiter 8-10 l optional for INT 12 l/ min
remote control 1 x per appliance, up to 4 option No
capable for solar yes (except for 27kW appliance) considere an anti-scalding protection New! Yes ( except for 27 kW appliances) consider an anti-scalding protection.
Max. Inlet temperature 60˚C / 25˚C *for 27kW appliances 60˚C / 25˚C *for 27kW appliances
electronicVED exclusiv unit VED E 18/8 P VED E 21/8 P VED E 24/8 P VED E 27/8 P
Nominal output kW 18 21 24 27
Electrical connection - 400V / 50Hz / 3/PE ~
Nominal current A 26 31 35 37.7
Max. Flow rate quantity l/min 12 14 16 18
Max. Permissible inlet temperature °C 55 25
Temperature adjustment range °C Between 20˚C and 55˚C, three stages, electronically regulated
Dimensions: Height / Width / Depth mm 481 / 240 / 100
Weight kg 4,4
IP Rating - IP 25
Back to top

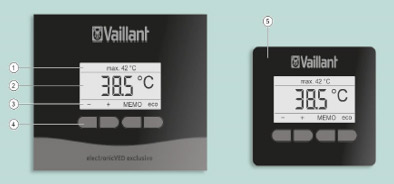

Display design "exclusive" key

1. Max. Set temperature

2. Current temperature

3. Description for the adjustment knobs

4. Adjustment knobs

5. Display design for the remote controller
